The Complete Guide to Computer Cables and Adapters: Video, Data, and Networking

Mismatched ports, flickering monitors, and bottlenecked transfer speeds almost always trace back to an incorrect cable or passive adapter. Modern connectivity standards share similar physical shapes while housing vastly different bandwidth capabilities, power delivery ratings, and protocol support.

Whether setting up a multi-monitor workstation, outfitting modern laptops with legacy equipment, or terminating a high-speed network, this guide details which cables, dongles, and adapters deliver reliable signal transmission.

1. Video Cables and Display Adapters

Modern displays demand enormous bandwidth to push high refresh rates, HDR color spaces, and 4K or 8K resolutions.

HDMI vs. DisplayPort: Choosing the Right Standard

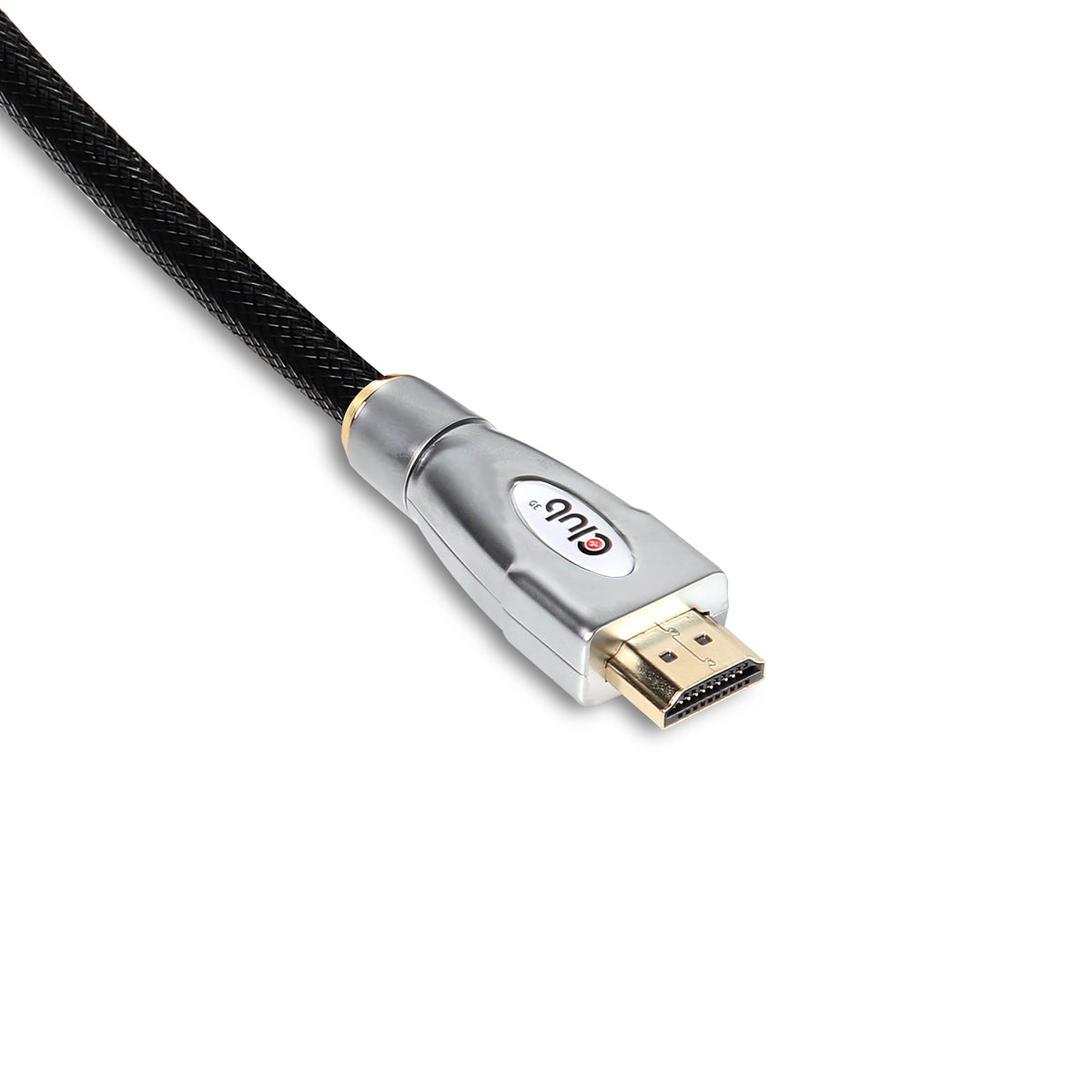

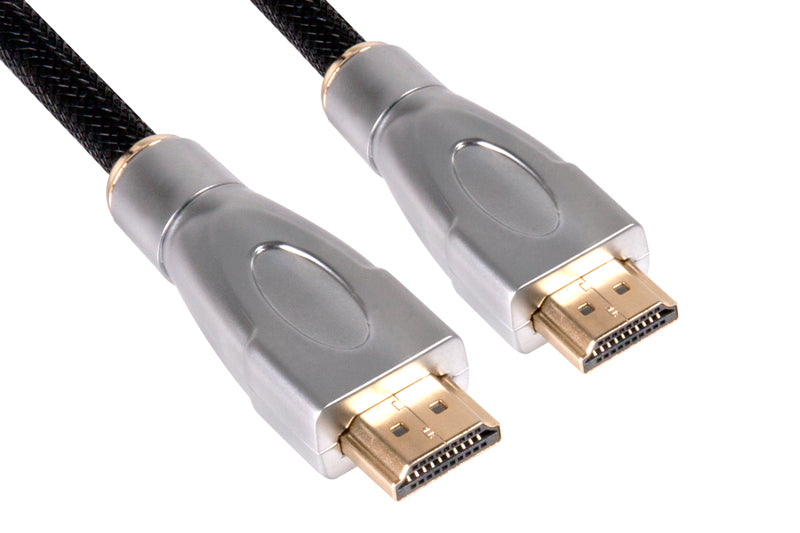

• HDMI (High-Definition Multimedia Interface): The consumer standard for TVs, monitors, and consoles.

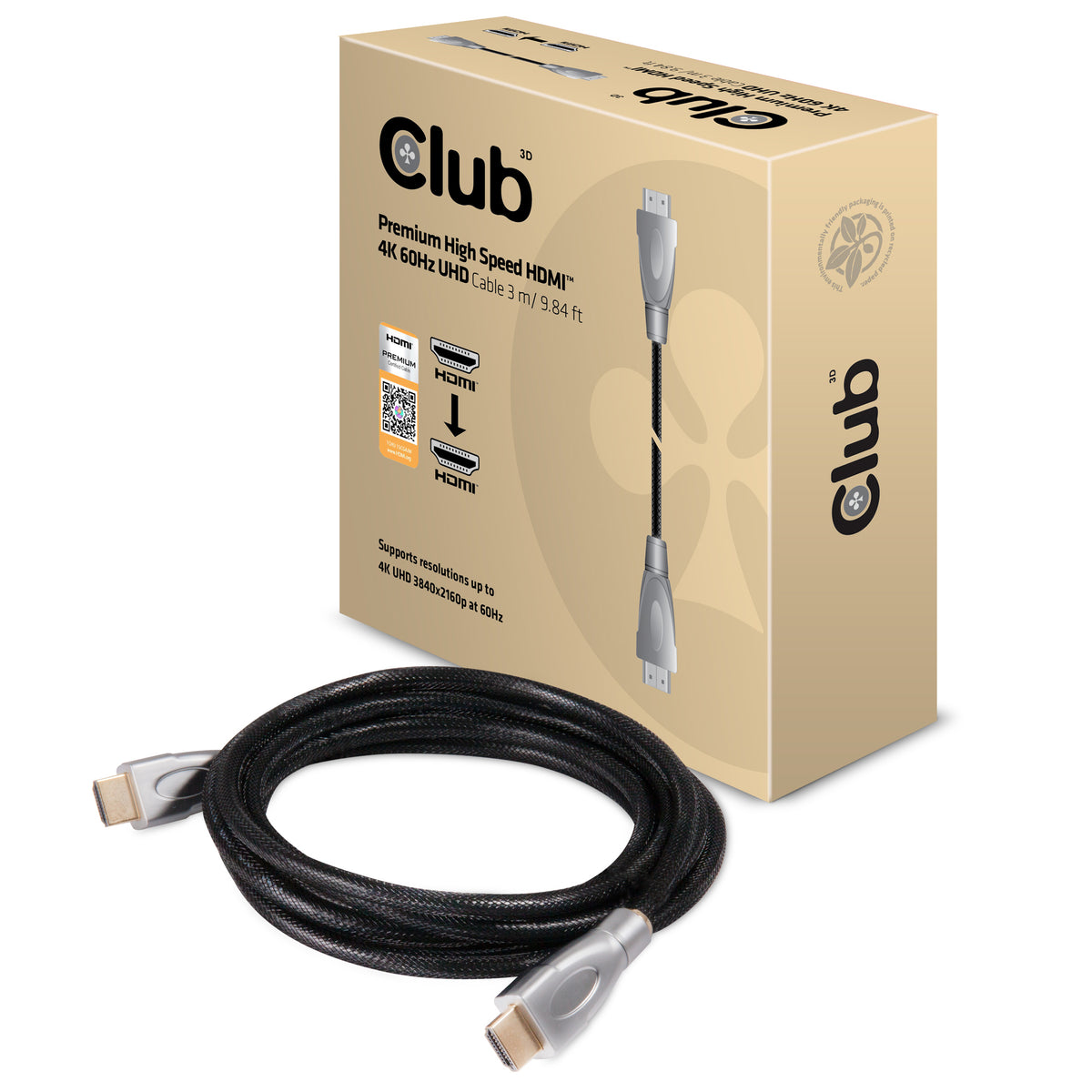

  • HDMI 2.0: Supports 4K at 60Hz.

  • HDMI 2.1: Unlocks uncompressed 4K at 120Hz and 8K at 60Hz with Variable Refresh Rate (VRR) and eARC.

• DisplayPort (DP): The standard interface for desktop PC monitors and gaming GPUs.

  • DisplayPort 1.4: Delivers 4K at 144Hz or 8K at 60Hz via Display Stream Compression (DSC).

  • DisplayPort 2.1: Scales bandwidth past 80 Gbps, accommodating high-framerate multi-monitor 4K configurations without DSC artifacts.

The Pitfall: Active vs. Passive Video Adapters

Adapting between standards (e.g., DisplayPort to HDMI) requires checking whether your source output supports digital dual-mode (DP++).

• Passive Adapters: Simple physical pin converters. They only function if the host graphics card automatically converts its internal signal to the target format (such as DP to single-link DVI/HDMI).

• Active Adapters: Contain an integrated chip that actively translates digital signaling protocols. Active converters are mandatory when converting standard DisplayPort to HDMI 2.0/2.1, driving triple-monitor setups, or converting older analog VGA signals from digital sources.

2. USB Standards and Type-C Converters

USB Type-C designates the reversible connector shape, not the underlying speed or protocol.

Multi-Port Hubs vs. Dedicated Docking Stations

• Bus-Powered USB-C Hubs: Lightweight travel dongles pulling power directly from the host laptop to provide HDMI, a couple of USB-A ports, and SD card readers.

• Mains-Powered Thunderbolt/USB4 Docks: Stationed on desktops with independent power supplies, these route native PCIe channels to support dual uncompressed video outputs, dedicated gigabit Ethernet, multiple peripheral ports, and full-rate laptop charging simultaneously.

3. Network Cables: Cat6, Cat6a, and Beyond

Wi-Fi provides convenience, but physical twisted-pair copper cabling remains the bedrock of low-latency, interference-free local network backbones.

• Cat5e: Up to 1 Gbps at 100 MHz bandwidth up to 100 meters. Adequate for legacy home connections, but obsolete for new structured installations.

• Cat6: Up to 10 Gbps over shorter runs (up to 37–55 meters), and 1 Gbps at full 100-meter distances with reduced crosstalk. The sweet spot for residential and light-office builds.

• Cat6a (Augmented): Operates at 500 MHz, reliably sustaining 10 Gbps throughout the full 100-meter limit. Recommended for enterprise infrastructure, Power-over-Ethernet (PoE) access points, and NAS backbone links.

• UTP vs. STP Shielding: Unshielded Twisted Pair (UTP) is standard for indoor dry walls. Shielded Twisted Pair (STP/FTP) protects against electromagnetic interference (EMI) near heavy machinery, fluorescent ballasts, or parallel high-voltage electrical runs.

Quick Hardware Compatibility Matrix

Frequently Asked Questions

Why does a USB-C cable charge a laptop but fail to send video to a monitor?

USB-C cables look identical externally, but their internal wiring varies significantly. Basic charging cables only carry USB 2.0 data lines and power conductors. Video output requires a cable rated for DisplayPort Alternate Mode (DP Alt Mode) or a certified Thunderbolt / USB4 cable.

Can an HDMI to DisplayPort cable work in reverse?

Most off-the-shelf HDMI to DisplayPort cables and passive adapters are unidirectional. A cable built to take a DisplayPort source to an HDMI monitor cannot convert an HDMI source (such as a gaming console or set-top box) into a DisplayPort monitor without an active, externally powered converter box.

Does cable length reduce Ethernet speed?

Standard copper twisted-pair Ethernet cables (Cat5e, Cat6, Cat6a) are rated for maximum channel lengths of 100 meters (328 feet) before signal attenuation and packet drop occur. For runs exceeding 100 meters, signal repeaters, active switches, or fiber-optic links are required.
